Description

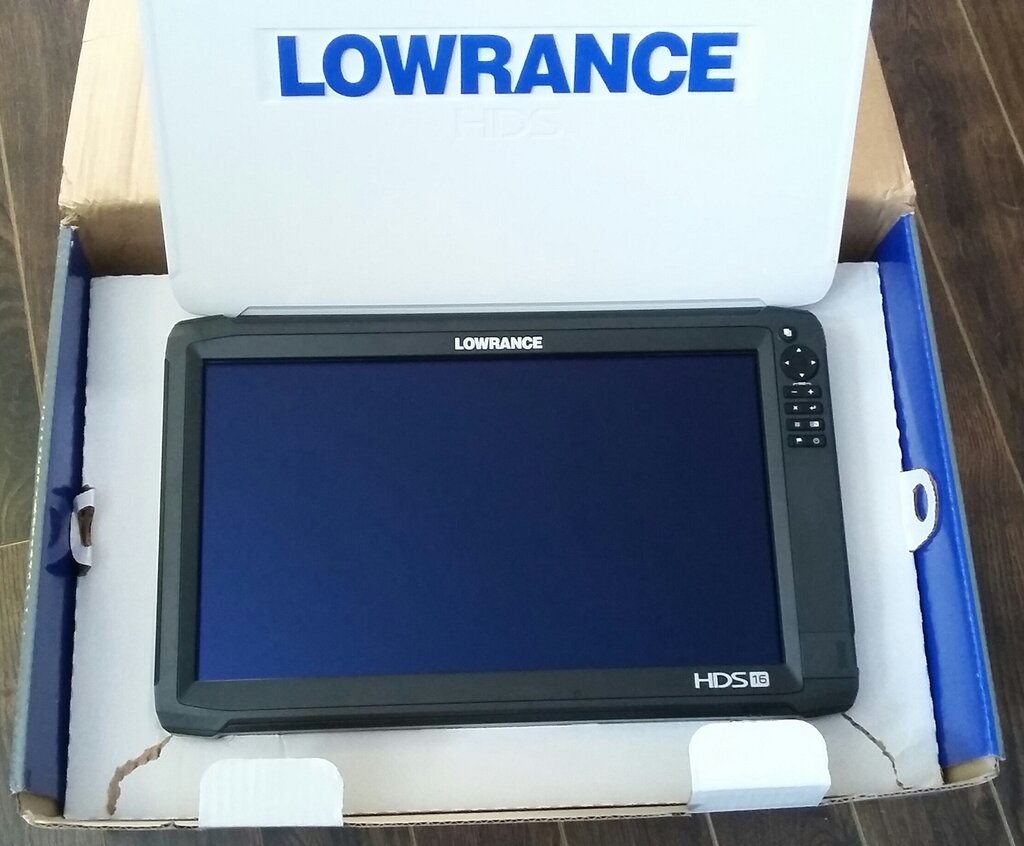

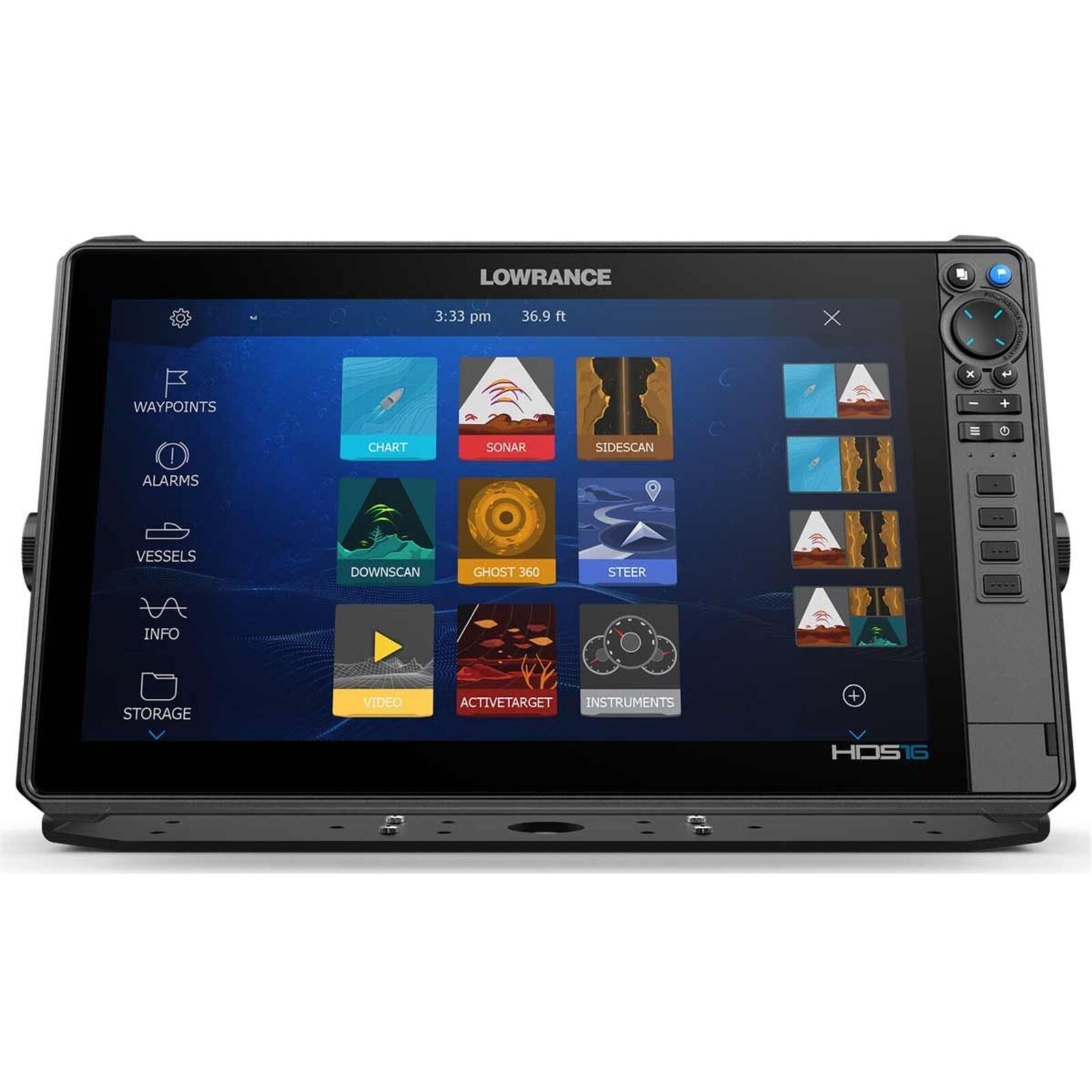

HDS-16 Carbon combines an ultra-clear SolarMAX™ HD display with a new dual core high-performance processer, leading-edge fishfinder technology dual channel CHIRP and dual network sounder using the latest advances in integrated wireless service tools. More agility, speed and brute power all in one easy-to-use multi-touch display. Comes with TotalScan Transducer.
General
| Display Size |
15.6in (396mm) Diag. |
| Display Type |
FULL HD color IPS TFT LCD |
| Resolution |
1920H x 1080W |
| Backlight |
Pure White LED |
| Display Brightness |
> 1200 Nits |
| Height |
10.15in (257.9mm) |
| Width |
16.26in (413.0mm) |
| Depth |
3.68in (93.47mm) |
| Weight |
7.94lb (3.60kg) |
Environmental
| Operating Temperature |
5°F to 131°F (-15°C to 55°C ) |
| Waterproof |
IPX7 with card door closed |
| DOC |
Part 15.103 FCC rules & CE RTTE directive 1999/5/EC |
Electrical
| Current Draw |
MAX – 3.6 A @ 13.8 VDC with backlight on full |
Typical – 2.75 A @ 13.8 VDC
| Operating Voltage |
12 VDC |
| Supply Voltage |
10.8-17 VDC |
User Interface
| Interface |
Full Multi-touch touchscreen and Keypad; 8-way directional keypad; ZOOM +/-, EXIT,ENTER,MENU,SWAP PANEL,WPT,LIGHT/POWER |
| Standard Languages |
Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska |
Chart Plotter Characteristics
| Display Modes |
North up, Course up (COG), Heading up (heading with external heading sensor or COG) |
| Built-in Cartography |
Insight USA (AMER models), Navionics basemap (AMER and ROW models) |
| Add on Cartography |
Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots |
| Alarms |
No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival |
Sonar Characteristics
| Built-in CHIRP |
Yes |
| Built-in Broadband |
Yes |
| Multiple Network Sonar |
Yes |
| Dual Channel CHIRP Sonar |
Yes |
| Built-in StructureScan |
Yes |
| Available Frequency |
83/200 kHz or 50/200 kHz (depending on Broadband transducer); 455/800 kHz for StructureScan |
| Available CHIRP Frequencies |
High CHIRP, Medium CHIRP or Low CHIRP (depending on transducer) |
| Power |
1kW capable depending on transducer |
| Max Depth |
5000ft (1524m) *depending on transducer |
| Alarms |
Depth, Fish I.D., Shallow |
Radar Charateristics
| Radar Compatibility |
4G (Broadband), 3G (Broadband), TX06L-1 (6kW HD Digital) |
| EBL/VRM |
2 user configurable |
| Guard Zones |
2 user configurable |
Comms/Interface
| NMEA0183 |
1 x RS422 port |
| Supported baud rates |
1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200 |
| Ethernet |
2 Port |
| NMEA 2000 |
1 Micro-C |
| Video Input |
Yes with optional cable |
| Data Card Slot |
2 micro SD cards up to 32GB |
