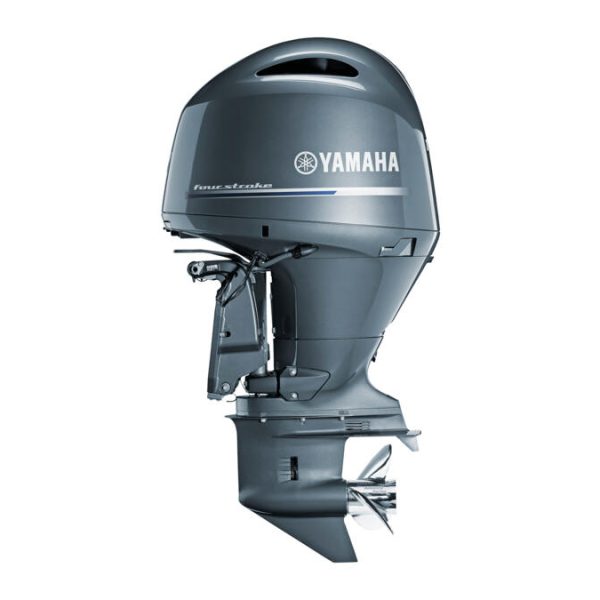

Name: New Yahama 150hp | Outboard Engine
SKU: 11459
Price: 5200.00 USD
Availability: InStock

Description

Product Description

This new unit offers fresh styling and modern design, aligning the aesthetics of the Premium and High Power segments. The design cues and graphics on this engine are all pointers to the exciting technology that lives just inside. Chase down some high-power adrenaline rushes as the 150hp comes with a four-cylinder configuration, delivering smooth acceleration. The integrated steer-by-wire helm system gives you more precise handling, a smoother experience and reduced maintenance

The 150hp engine benefits from enhanced connectivity for greater control and confidence.

Technical Engine Specifications:
Engine type: 4-stroke
Displacement: 2785 cm³
No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
Bore x stroke: 96.0 mm x 96.2 mm
Prop shaft output at mid range: 110.3kW / 5,500 rpm
Full throttle operating range: 5,000 – 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Gear ratio: 1.86 (26/14)

Dimensions:
Recommended boat transom height: L: 516mm
Weight with propeller: F150LC: 242 kg
Oil pan capacity: 4.5 litres

Features:
Steering: Integrated Hydraulic Steering (IHS)
Control: Mechanical Remote Control / Throttle & Gear (MEC RC)
Starting Method: Electric Start (ES)
Trim & tilt method: Power trim & tilt (PT&T)
Battery Charging:12v – 50A Output
Propeller: Included

Fitting the engine yourself

If you’re planning on fitting the engine yourself we can always give you very clear instructions on how to do so.

The following points will be discussed:

– The correct way of drilling the holes in the shaft (with new boats).
– Sealing the engine with the right sealant to prevent leakage and rotting of the mirror.
– Hanging the engine at the correct height.
– Connecting the cabling to the remote control and gauges.
– Connecting to the battery (possibly via main switch).
– Discussing which propeller you need for the best performance. (we often take several sizes of propellers with us so that we can determine on site which one you need)
– Explanation of how to install and correctly adjust the throttle/shift cables.
– Explanation of how to use a new engine.
– Explanation of the manufacturer’s warranty.
